An Invitation to Analytic Combinatorics

MPI Lecture Series

Lecture 1

Stephen Melczer

Der Marktplatz von Leipzig, 1882 by Albert Schwendy

Part 1
Computing With Constants

To Compute We Need to Encode

Integers: Store exactly using binary representation.


$$ 26 \leftrightarrow 11010 $$



Rationals: Store as pair of integers.



$$ \frac{2}{3} \leftrightarrow (2,3) $$



Algebraic Numbers (roots of polys in \(\mathbb{Z}[x]\)): Store implicitly
using an integer polynomial and numeric information.



$$\sqrt{2} \quad\leftrightarrow\quad p(x)=x^2-2 \;\;\text{ and }\;\; x>0 $$

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.





sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(f,g \in A[y]\) then \(\text{resultant}_y(f,g) \in A\) equals \(0\) if and only if \(f\) and \(g\) share a root.

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(P(\alpha)=0\) and \(Q(\beta)=0\) then \(R(\alpha+\beta)=0\) where

$$ R(x) = \text{resultant}_y(P(x-y),Q(y))$$

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(P(\alpha)=0\) and \(Q(\beta)=0\) then \(R(\alpha+\beta)=0\) where

$$ R({\color{lightblue}\alpha+\beta}) = \text{resultant}_y(P({\color{lightblue}\alpha+\beta}-y),Q(y))$$

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(P(\alpha)=0\) and \(Q(\beta)=0\) then \(R(\alpha+\beta)=0\) where

$$ R(x) = \text{resultant}_y(P(x-y),Q(y))$$

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(P(\alpha)=0\) and \(Q(\beta)=0\) then \(R(\alpha \,{\color{lightblue}-}\, \beta)=0\) where

$$ R(x) = \text{resultant}_y(P(x \,{\color{lightblue}+}\, y),Q(y))$$

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(P(\alpha)=0\) and \(Q(\beta)=0\) then \(R(\alpha \,{\color{lightblue}/}\, \beta)=0\) where

$$ R(x) = \text{resultant}_y(P(x \,{\color{lightblue}\cdot}\, y),Q(y))$$

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Polynomials are Data Structures

Some algebraic numbers cannot be represented exactly.








We use mathematical tools to manipulate algebraic numbers implicitly through their defining polynomials.



The Resultant

If \(P(\alpha)=0\) and \(Q(\beta)=0\) then \(R(\alpha \,{\color{lightblue}\cdot}\, \beta)=0\) where

$$ R(x) = \text{resultant}_y({\color{lightblue}y^d}P(x \,{\color{lightblue}/}\, y),Q(y))$$

sage: P = QQ['x'](x^5 - 4*x + 1)
sage: P.galois_group().is_solvable()
> False

Algebraic Numbers are Effective

Theorem (Ramanujan)

$$ \frac{\sin\left(\frac{2\pi}{7}\right)}{\sin\left(\frac{3\pi}{7}\right)^2} - \frac{\sin\left(\frac{\pi}{7}\right)}{\sin\left(\frac{2\pi}{7}\right)^2} + \frac{\sin\left(\frac{3\pi}{7}\right)}{\sin\left(\frac{\pi}{7}\right)^2} = 2\sqrt{7}$$

Exercise 6.7 in Algorithmes Efficaces en Calcul Formel by Bostan et al. (2017)

Algebraic Numbers are Effective

Theorem (Ramanujan)

$$ \frac{\sin\left(\frac{2\pi}{7}\right)}{\sin\left(\frac{3\pi}{7}\right)^2} - \frac{\sin\left(\frac{\pi}{7}\right)}{\sin\left(\frac{2\pi}{7}\right)^2} + \frac{\sin\left(\frac{3\pi}{7}\right)}{\sin\left(\frac{\pi}{7}\right)^2} = 2\sqrt{7}$$




Note: \(\sin(\theta) = \frac{e^{i\theta}-e^{-i\theta}}{2i}\) is algebraic if \(\theta\) is a rational multiple of \(\pi\).

Exercise 6.7 in Algorithmes Efficaces en Calcul Formel by Bostan et al. (2017)

Algebraic Numbers are Effective

Theorem (Ramanujan)

$$ \frac{\sin\left(\frac{2\pi}{7}\right)}{\sin\left(\frac{3\pi}{7}\right)^2} - \frac{\sin\left(\frac{\pi}{7}\right)}{\sin\left(\frac{2\pi}{7}\right)^2} + \frac{\sin\left(\frac{3\pi}{7}\right)}{\sin\left(\frac{\pi}{7}\right)^2} = 2\sqrt{7}$$

# Express LHS in terms of x = exp(I*pi/7) so x^7 = -1
var('x t')
C   = pi/7
sbs = [e^(k*I*C) == x^k for k in [-3,-2,-1,1,2,3]]

LHS = sin(2*C)/sin(3*C)^2 - sin(C)/sin(2*C)^2 + sin(3*C)/sin(C)^2
LHSe = LHS.exponentialize().subs(sbs)
show(LHSe)

Exercise 6.7 in Algorithmes Efficaces en Calcul Formel by Bostan et al. (2017)

$$-\frac{i \, x^{2} - \frac{i}{x^{2}}}{2 \, {\left(-\frac{1}{2} i \, x^{3} + \frac{i}{2 \, x^{3}}\right)}^{2}} + \frac{i \, x - \frac{i}{x}}{2 \, {\left(-\frac{1}{2} i \, x^{2} + \frac{i}{2 \, x^{2}}\right)}^{2}} - \frac{i \, x^{3} - \frac{i}{x^{3}}}{2 \, {\left(-\frac{1}{2} i \, x + \frac{i}{2 \, x}\right)}^{2}}$$

Algebraic Numbers are Effective

Exercise 6.7 in Algorithmes Efficaces en Calcul Formel by Bostan et al. (2017)

# Eliminate x to get equation satisfied by t = LHS
sage: P = QuadraticField(-1)[t][x]((t-LHSe).numerator())
sage: Q = QuadraticField(-1)[t][x](x^7+1)
sage: P.resultant(Q).factor()
> (-1274) * (t^2 - 28)^3

Theorem (Ramanujan)

$$ \frac{\sin\left(\frac{2\pi}{7}\right)}{\sin\left(\frac{3\pi}{7}\right)^2} - \frac{\sin\left(\frac{\pi}{7}\right)}{\sin\left(\frac{2\pi}{7}\right)^2} + \frac{\sin\left(\frac{3\pi}{7}\right)}{\sin\left(\frac{\pi}{7}\right)^2} = 2\sqrt{7}$$

The theorem then follows from checking that the left-hand side is positive.

Part 2
Computing With Sequences

Combinatorial Sequences

Now suppose we have a sequence \((f_n)=f_0,f_1,\dots\) which could


  • count objects in a combinatorial class



  • capture the probability that an event occurs



  • track the runtime of an algorithm




Goal: Say something interesting about the sequence.

Exact Counting Formulas

Nice exact formulas do not always exist — and even if they do they can be hard to find and prove.

Efficient Algorithms

Gathering data can be useful for studying sequences, and conjecturing formulas, but doesn’t fully capture behaviour.

M = Matrix(ZZ,2,2,[1,1,1,0])

def bin_pow(n):
  if     n == 1: return M
  elif n%2 == 0: return bin_pow(n/2)^2
  else:          return bin_pow((n-1)/2)^2 * M

def fib(n):      return add(bin_pow(n)[1])

sage: timeit('fib(10^6)') # 208,987 digits long!
> 125 loops, best of 3: 2.92 ms per loop

Asymptotics

$$ \text{\# unlabelled graphs on \(n\) nodes } \sim \frac{2^\binom{2n}{n}}{n!}$$

$$ \text{\# partitions of } n \sim \frac{n^{-1}}{4\sqrt{3}}\exp\left(\pi\sqrt{\frac{2n}{3}}\right) $$

$$\text{average quicksort cost}$$

$$\text{on permutation of size } n$$

$$\sim 2n\log n$$

Instead focus on approximating \(f_n\) as \(n\rightarrow\infty\).

Asymptotics

$$ \text{\# unlabelled graphs on \(n\) nodes } \sim \frac{2^\binom{2n}{n}}{n!}$$

$$ \text{\# partitions of } n \sim \frac{n^{-1}}{4\sqrt{3}}\exp\left(\pi\sqrt{\frac{2n}{3}}\right) $$

$$\text{average quicksort cost}$$

$$\text{on permutation of size } n$$

$$\sim 2n\log n$$

Conjecture (Wilf 1982): There is no polynomial time algorithm to enumerate unlabelled graphs exactly.

Instead focus on approximating \(f_n\) as \(n\rightarrow\infty\).

Generating Functions

We encode a sequence \((f_n)\) using its generating function


$$F(z) = \sum_{n \geq 0}f_nz^n = f_0 + f_1z + f_2z^2 + \cdots$$



A generating function is a formal object. It represents* a complex function when \(f_n\) grows at most exponentially.


Generating Functions

We encode a sequence \((f_n)\) using its generating function


$$F(z) = \sum_{n \geq 0}f_nz^n = f_0 + f_1z + f_2z^2 + \cdots$$



A generating function is a formal object. It represents* a complex function when \(f_n\) grows at most exponentially.

Example
The series \(\displaystyle\sum_{n \geq 0}n!\, z^n\) converges only when \(z=0\).

The series \(\displaystyle\sum_{n \geq 0}2^n\, z^n\) converges when \(|z|<1/2\).

Combinatorial Classes

A combinatorial class consists of





such that there are a finite number of objects of any size.






  • a set of objects \(\mathcal{C}\)
  • a size function \(|\cdot|:\mathcal{C}\rightarrow\mathbb{N}\)



Combinatorial Classes

A combinatorial class consists of





such that there are a finite number of objects of any size.



Example

The set of binary strings \(\mathcal{C}=\{\epsilon,0,1,00,01,\dots\}\) with size given by length is a combinatorial class.




  • a set of objects \(\mathcal{C}\)
  • a size function \(|\cdot|:\mathcal{C}\rightarrow\mathbb{N}\)



Combinatorial Classes

A combinatorial class consists of





such that there are a finite number of objects of any size.



Example

The set of binary strings \(\mathcal{C}=\{\epsilon,0,1,00,01,\dots\}\) with size given by length is a combinatorial class.

Non-Example
The set of binary strings with size given by number of zeroes is not a combinatorial class as \(|\epsilon|=|1|=|11|=\cdots\)


  • a set of objects \(\mathcal{C}\)
  • a size function \(|\cdot|:\mathcal{C}\rightarrow\mathbb{N}\)



Generating Functions Redux

The counting sequence of a class \(\mathcal{C}\) is the sequence \((c_n)\) where \(c_n = \#\) objects in \(\mathcal{C}\) with size \(n\).



The generating function of \((\mathcal{C},|\cdot|)\) is

$$C(z) = \sum_{n \geq 0}c_nz^n = \sum_{\sigma \in \mathcal{C}}z^{|\sigma|}. $$



Example
The generating function for the class of binary strings with size given by length is

$$C(z) = 1 + 2z + 4z^2 + \cdots = \frac{1}{1-2z}. $$

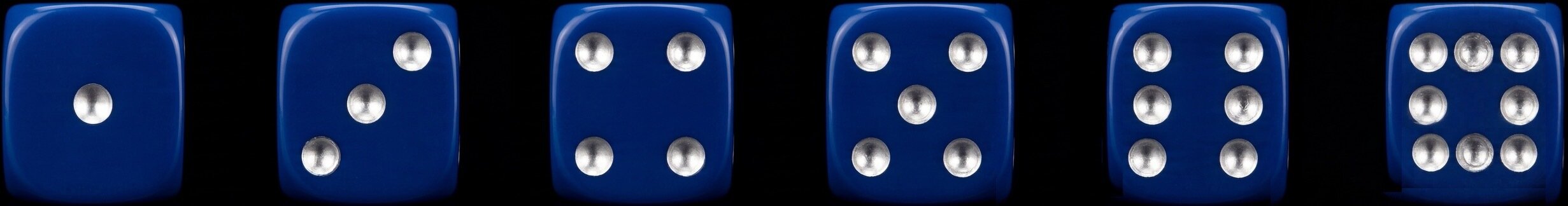

Example: Dice Rolls

The generating function for rolls of two standard dice with size given by sum of dots is


$$ P(z) = (z+z^2+z^3+z^4+z^5+z^6)^2.$$






Example: Dice Rolls

The generating function for rolls of two standard dice with size given by sum of dots is


$$ P(z) = (z+z^2+z^3+z^4+z^5+z^6)^2.$$


Generating functions let us use mathematical methods to study combinatorial objects.



Example: Dice Rolls

The generating function for rolls of two standard dice with size given by sum of dots is


$$ P(z) = (z+z^2+z^3+z^4+z^5+z^6)^2.$$


Generating functions let us use mathematical methods to study combinatorial objects.



sage: A.<z> = ZZ['z']
sage: ((z + z^2 + z^3 + z^4 + z^5 + z^6)^2).factor()
> z^2 * (z + 1)^2 * (z^2 - z + 1)^2 * (z^2 + z + 1)^2

Example: Dice Rolls

sage: A.<z> = ZZ['z']
sage: ((z + z^2 + z^3 + z^4 + z^5 + z^6)^2).factor()
> z^2 * (z + 1)^2 * (z^2 - z + 1)^2 * (z^2 + z + 1)^2

Example: Dice Rolls

By manipulating the factors we find that


$$\begin{aligned}P(z) &= {\Big(}z(z+1)(z^2+z+1){\Big)}{\Big(}z(z+1)(z^2+z+1)(z^2-z+1)^2{\Big)}\end{aligned}$$

sage: A.<z> = ZZ['z']
sage: ((z + z^2 + z^3 + z^4 + z^5 + z^6)^2).factor()
> z^2 * (z + 1)^2 * (z^2 - z + 1)^2 * (z^2 + z + 1)^2

Example: Dice Rolls

By manipulating the factors we find that


$$\begin{aligned}P(z) &= {\Big(}z(z+1)(z^2+z+1){\Big)}{\Big(}z(z+1)(z^2+z+1)(z^2-z+1)^2{\Big)}\\[+5mm]&= {\Big(}z+2z^2+2z^3+z^4{\Big)}{\Big(}z+z^3+z^4+z^5+z^6+z^8{\Big)}\end{aligned}$$

sage: A.<z> = ZZ['z']
sage: ((z + z^2 + z^3 + z^4 + z^5 + z^6)^2).factor()
> z^2 * (z + 1)^2 * (z^2 - z + 1)^2 * (z^2 + z + 1)^2

Example: Dice Rolls

By manipulating the factors we find that


$$\begin{aligned}P(z) &= {\Big(}z(z+1)(z^2+z+1){\Big)}{\Big(}z(z+1)(z^2+z+1)(z^2-z+1)^2{\Big)}\\[+5mm]&= {\color{salmon}{\Big(}z+2z^2+2z^3+z^4{\Big)}}{\color{lightblue}{\Big(}z+z^3+z^4+z^5+z^6+z^8{\Big)}}\end{aligned}$$

sage: A.<z> = ZZ['z']
sage: ((z + z^2 + z^3 + z^4 + z^5 + z^6)^2).factor()
> z^2 * (z + 1)^2 * (z^2 - z + 1)^2 * (z^2 + z + 1)^2

George Sicherman, Letter to Martin Gardiner (January 1977)




Example: Dice Rolls

By manipulating the factors we find that


$$\begin{aligned}P(z) &= {\Big(}z(z+1)(z^2+z+1){\Big)}{\Big(}z(z+1)(z^2+z+1)(z^2-z+1)^2{\Big)}\\[+5mm]&= {\color{salmon}{\Big(}z+2z^2+2z^3+z^4{\Big)}}{\color{lightblue}{\Big(}z+z^3+z^4+z^5+z^6+z^8{\Big)}}\end{aligned}$$

sage: A.<z> = ZZ['z']
sage: ((z + z^2 + z^3 + z^4 + z^5 + z^6)^2).factor()
> z^2 * (z + 1)^2 * (z^2 - z + 1)^2 * (z^2 + z + 1)^2

George Sicherman, Letter to Martin Gardiner (January 1977)


Gallian & Rusin, Discrete Math (1979)
Broline, Mathematics Magazine (1979)

The Symbolic Method

How can we find algebraic/differential/function equations satisfied by a generating function?



There are many domain specific methods (integer partitions, lattice path models, maps, permutations, etc.)



The Symbolic Method

How can we find algebraic/differential/function equations satisfied by a generating function?



There are many domain specific methods (integer partitions, lattice path models, maps, permutations, etc.)


Can also build generating functions recursively.



Atomic Class: \(\mathcal{Z}\) has 1 object of size 1 and GF \(z\)


Neutral Class: \(\mathcal{E}\) has 1 objects of size 0 and GF \(1\)

Combinatorial Constructions

Let \((\mathcal{A},|\cdot|_\mathcal{A})\) and \((\mathcal{B},|\cdot|_\mathcal{B})\) be combinatorial classes.


The disjoint union \(\mathcal{C} = \mathcal{A} + \mathcal{B}\) has size function


$$ |\sigma|_\mathcal{C} = \begin{cases} |\sigma|_\mathcal{A} &: \sigma \in \mathcal{A} \\ |\sigma|_\mathcal{B} &: \sigma \in \mathcal{B} \end{cases} $$







Combinatorial Constructions

Let \((\mathcal{A},|\cdot|_\mathcal{A})\) and \((\mathcal{B},|\cdot|_\mathcal{B})\) be combinatorial classes.


The disjoint union \(\mathcal{C} = \mathcal{A} + \mathcal{B}\) has size function


$$ |\sigma|_\mathcal{C} = \begin{cases} |\sigma|_\mathcal{A} &: \sigma \in \mathcal{A} \\ |\sigma|_\mathcal{B} &: \sigma \in \mathcal{B} \end{cases} $$


and thus generating function



$$C(z) = \sum_{n \geq 0} c_n z^n = \sum_{n \geq 0} (a_n + b_n)z^n = A(z)+B(z).$$





Combinatorial Constructions

Let \((\mathcal{A},|\cdot|_\mathcal{A})\) and \((\mathcal{B},|\cdot|_\mathcal{B})\) be combinatorial classes.


The (Cartesian) product \(\mathcal{C} = \mathcal{A} \times \mathcal{B}\)  has size function


$$ |(\alpha,\beta)|_\mathcal{C} = |\alpha|_\mathcal{A} + |\beta_\mathcal{B}| $$


and thus generating function



$$C(z) = \sum_{n \geq 0} c_n z^n = \sum_{n \geq 0} \left(\sum_{k=0}^n a_kb_{n-k}\right)z^n = A(z)B(z).$$

Combinatorial Constructions

Let \((\mathcal{A},|\cdot|_\mathcal{A})\) be a combinatorial class.


The power \(\mathcal{A}^k = \mathcal{A} \times \cdots \times \mathcal{A}\) has generating function \(A(z)^k\).



Combinatorial Constructions

Let \((\mathcal{A},|\cdot|_\mathcal{A})\) be a combinatorial class.


The power \(\mathcal{A}^k = \mathcal{A} \times \cdots \times \mathcal{A}\) has generating function \(A(z)^k\).


If \(\mathcal{A}\) has no objects of size 0 then the sequence class



$$ \mathcal{C} = \text{SEQ}(\mathcal{A}) = \mathcal{E} + \mathcal{A} + \mathcal{A}^2 + \cdots$$



contains all finite length tuples of objects in \(\mathcal{A}\).

Combinatorial Constructions

Let \((\mathcal{A},|\cdot|_\mathcal{A})\) be a combinatorial class.


The power \(\mathcal{A}^k = \mathcal{A} \times \cdots \times \mathcal{A}\) has generating function \(A(z)^k\).


If \(\mathcal{A}\) has no objects of size 0 then the sequence class



$$ \mathcal{C} = \text{SEQ}(\mathcal{A}) = \mathcal{E} + \mathcal{A} + \mathcal{A}^2 + \cdots$$



contains all finite length tuples of objects in \(\mathcal{A}\). It has GF



$$C(z) = 1 + A(z) + A(z)^2 + \cdots = \frac{1}{1-A(z)}.$$

A Rational Example

Example

An integer composition of size \(n\) is a tuple of positive integers summing to \(n\) (a partition "but the order matters").

A Rational Example

Example

An integer composition of size \(n\) is a tuple of positive integers summing to \(n\) (a partition "but the order matters").

Let \(\mathcal{P}= \mathcal{Z}\times\text{SEQ}(\mathcal{Z}) \) be the class of positive integers.



A Rational Example

Example

An integer composition of size \(n\) is a tuple of positive integers summing to \(n\) (a partition "but the order matters").

Let \(\mathcal{P}= \mathcal{Z}\times\text{SEQ}(\mathcal{Z}) \) be the class of positive integers.

Let  \(\mathcal{C}= \text{SEQ}(\mathcal{P})\)         be the class of integer compositions.


A Rational Example

Example

An integer composition of size \(n\) is a tuple of positive integers summing to \(n\) (a partition "but the order matters").

Let \(\mathcal{P}= \mathcal{Z}\times\text{SEQ}(\mathcal{Z}) \) be the class of positive integers.

Let  \(\mathcal{C}= \text{SEQ}(\mathcal{P})\)         be the class of integer compositions.

Then \(\displaystyle P(z) = \frac{z}{1-z}\) and



$$ C(z) \;\;=\;\; \frac{1}{1-\frac{z}{1-z}} \;\; = \;\; \frac{1-z}{1-2z} \;\; =\;\; 1 - \sum_{n \geq 0}2^{n-1}z^n. $$

An Algebraic Example

Often we can relate a class to itself!



















Example

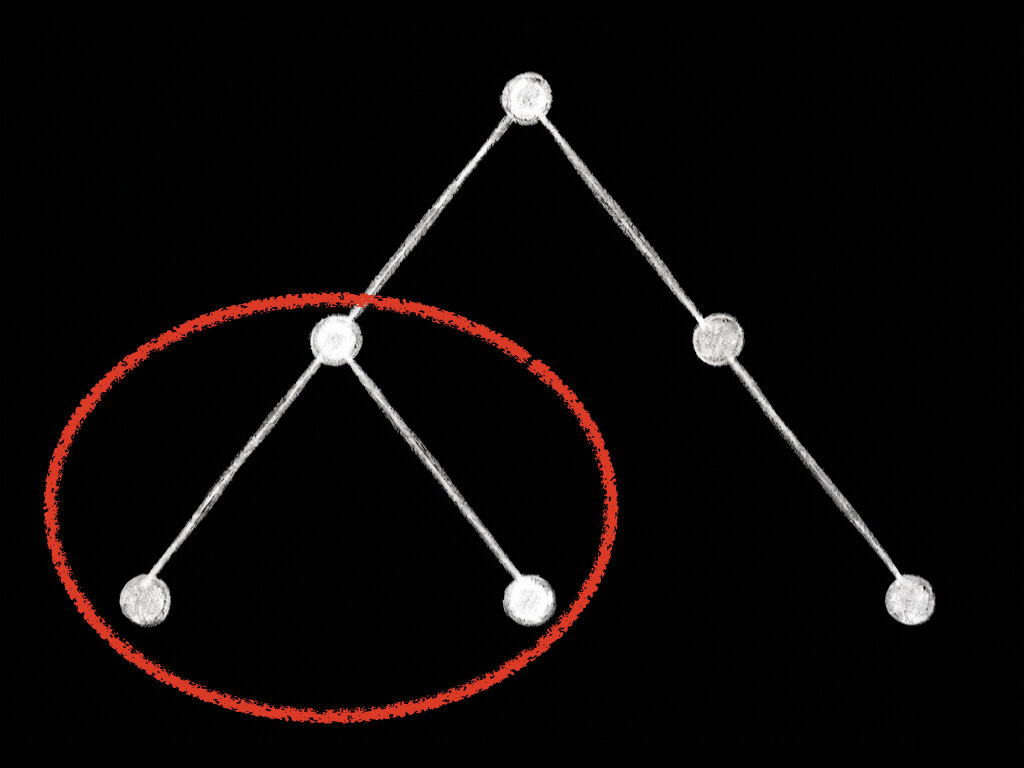

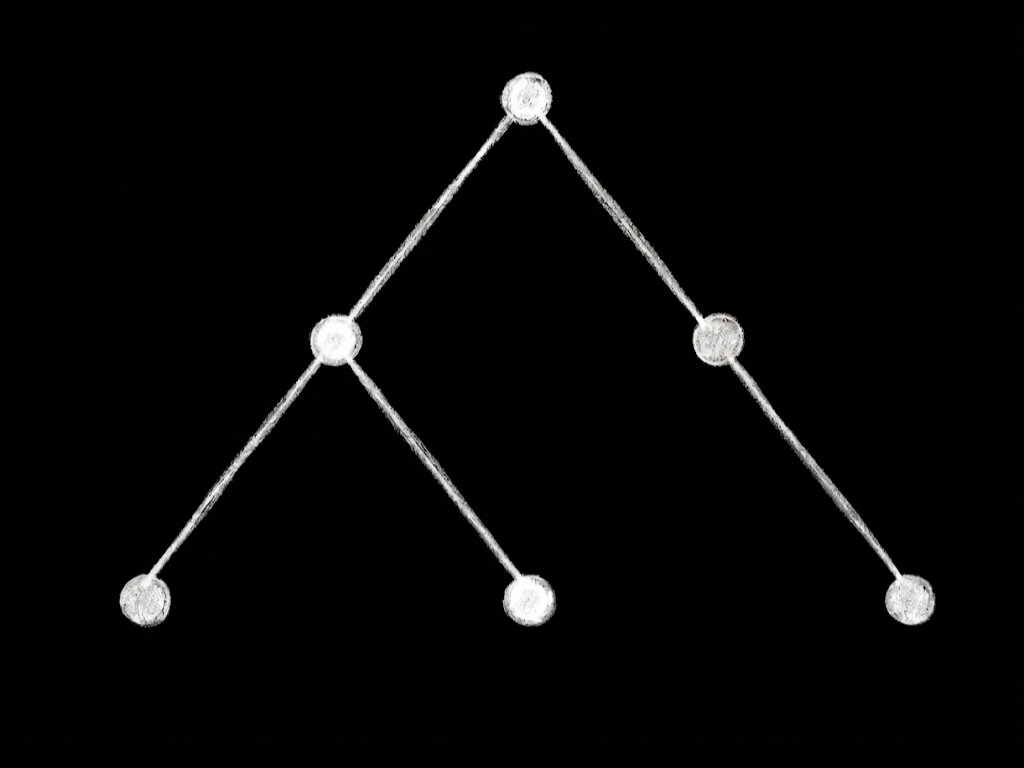

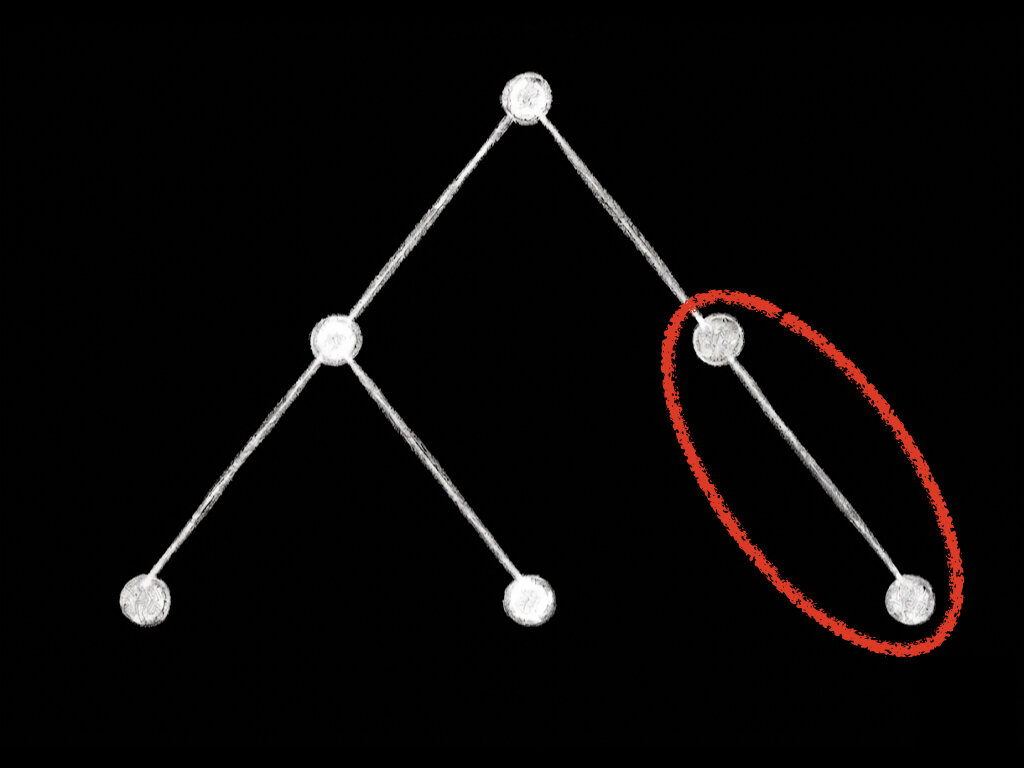

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



An Algebraic Example

Often we can relate a class to itself!

















$$\mathcal{B} = {\color{red}\underbrace{\mathcal{E}}_{\text{empty tree}}}  {\color{black}\;\; \overbrace{+}^{\text{or}} \;\; \underbrace{\mathcal{Z}}_{\text{root vertex}} \;\; \overbrace{\times}^\text{and} \;\; \underbrace{\mathcal{B}}_\text{left subtree} \;\;\overbrace{\times}^\text{and}\;\; \underbrace{\mathcal{B}}_\text{right subtree}}$$

Example

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



$$\color{red}\varnothing$$

An Algebraic Example

Often we can relate a class to itself!

















$$\mathcal{B} = \underbrace{\mathcal{E}}_{\text{empty tree}}  \;\; {\color{red}\overbrace{+}^{\text{or}}} \;\; {\color{black}\underbrace{\mathcal{Z}}_{\text{root vertex}} \;\; \overbrace{\times}^\text{and} \;\; \underbrace{\mathcal{B}}_\text{left subtree} \;\;\overbrace{\times}^\text{and}\;\; \underbrace{\mathcal{B}}_\text{right subtree}}$$

Example

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



An Algebraic Example

Often we can relate a class to itself!

















$$\mathcal{B} = \underbrace{\mathcal{E}}_{\text{empty tree}}  \;\; \overbrace{+}^{\text{or}} \;\; {\color{red}\underbrace{\mathcal{Z}}_{\text{root vertex}}} \;\; {\color{black}\overbrace{\times}^\text{and} \;\; \underbrace{\mathcal{B}}_\text{left subtree} \;\;\overbrace{\times}^\text{and}\;\; \underbrace{\mathcal{B}}_\text{right subtree}}$$

Example

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



An Algebraic Example

Often we can relate a class to itself!

















$$\mathcal{B} = \underbrace{\mathcal{E}}_{\text{empty tree}}  \;\; \overbrace{+}^{\text{or}} \;\; \underbrace{\mathcal{Z}}_{\text{root vertex}} \;\; \overbrace{\times}^\text{and}{\color{red} \;\; \underbrace{\mathcal{B}}_\text{left subtree}} \;\;{\color{black}\overbrace{\times}^\text{and}\;\; \underbrace{\mathcal{B}}_\text{right subtree}}$$

Example

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



An Algebraic Example

Often we can relate a class to itself!

















$$\mathcal{B} = \underbrace{\mathcal{E}}_{\text{empty tree}}  \;\; \overbrace{+}^{\text{or}} \;\; \underbrace{\mathcal{Z}}_{\text{root vertex}} \;\; \overbrace{\times}^\text{and} \;\; \underbrace{\mathcal{B}}_\text{left subtree} \;\;\overbrace{\times}^\text{and}\;\; {\color{red}\underbrace{\mathcal{B}}_\text{right subtree}}$$

Example

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



An Algebraic Example

Often we can relate a class to itself!

















$$\mathcal{B} = \underbrace{\mathcal{E}}_{\text{empty tree}}  \;\; \overbrace{+}^{\text{or}} \;\; \underbrace{\mathcal{Z}}_{\text{root vertex}} \;\; \overbrace{\times}^\text{and} \;\; \underbrace{\mathcal{B}}_\text{left subtree} \;\;\overbrace{\times}^\text{and}\;\; \underbrace{\mathcal{B}}_\text{right subtree}$$

Example

A (rooted planar) binary tree is either empty or is a root vertex followed by a left binary tree and a right binary tree.



An Algebraic Example

The specification


$$\mathcal{B} \;\;=\;\; \mathcal{E}  \;\; + \;\; \mathcal{Z} \;\; \times \;\; \mathcal{B} \;\;\times\;\; \mathcal{B}$$
implies
$$B(z) = 1 + zB(z)^2.$$





An Algebraic Example

The specification


$$\mathcal{B} \;\;=\;\; \mathcal{E}  \;\; + \;\; \mathcal{Z} \;\; \times \;\; \mathcal{B} \;\;\times\;\; \mathcal{B}$$
implies
$$B(z) = 1 + zB(z)^2.$$



Since this is quadratic, we can solve it to get



$$B(z) = \frac{1-\sqrt{1-4z}}{2z} \; {\color{black} = \sum_{n \geq0}\frac{1}{n+1}\binom{2n}{n}z^n.}$$

An Algebraic Example

The specification


$$\mathcal{B} \;\;=\;\; \mathcal{E}  \;\; + \;\; \mathcal{Z} \;\; \times \;\; \mathcal{B} \;\;\times\;\; \mathcal{B}$$
implies
$$B(z) = 1 + zB(z)^2.$$



Since this is quadratic, we can solve it to get



$$B(z) = \frac{1-\sqrt{1-4z}}{2z} = \sum_{n \geq0}\frac{1}{n+1}\binom{2n}{n}z^n.$$

An Algebraic Example

Note

The generating function \(T(z)\) for 5-ary trees satisfies


$$ T(z) = 1 + zT(z)^5.$$
The computation








shows \(T(1/100)\) — and thus \(T(z)\) — is not expressible in radicals.

sage: A.<y> = QQ['y']
sage: F = y^5 - 100*y + 100
sage: F.galois_group().is_solvable()
> False

Constructions in Sage

Computing terms can be done in Sage using Lazy Power Series (Rubey, Scrimshaw, Roy, Chebrolu)

# Introduce lazy power series
sage: S.<z> = LazyPowerSeriesRing(QQ)

# Define the class of positive integers
sage: P = z/(1-z)

Constructions in Sage

Computing terms can be done in Sage using Lazy Power Series (Rubey, Scrimshaw, Roy, Chebrolu)

# Introduce lazy power series
sage: S.<z> = LazyPowerSeriesRing(QQ)

# Define the class of positive integers
sage: P = z/(1-z)

# Define the class of integer compositions
sage: C = 1/(1-P)
sage: C
> 1 + z + 2*z^2 + 4*z^3 + 8*z^4 + 16*z^5 + 32*z^6 + O(z^7)

Constructions in Sage

Computing terms can be done in Sage using Lazy Power Series (Rubey, Scrimshaw, Roy, Chebrolu)

# Introduce lazy power series
sage: S.<z> = LazyPowerSeriesRing(QQ)

# Define the class of positive integers
sage: P = z/(1-z)

# Define the class of integer compositions
sage: C = 1/(1-P)
sage: C
> 1 + z + 2*z^2 + 4*z^3 + 8*z^4 + 16*z^5 + 32*z^6 + O(z^7)

# Get the number of compositions of size 100
sage: C[100]
> 633825300114114700748351602688

Constructions in Sage

# Define the class of binary trees
sage: B = S.undefined()
sage: B.define(1+z*B^2)
sage: B
> 1 + z + 2*z^2 + 5*z^3 + 14*z^4 + 42*z^5 + 132*z^6 + O(z^7)

Computing terms can be done in Sage using Lazy Power Series (Rubey, Scrimshaw, Roy, Chebrolu)

Constructions in Sage

# Define the class of binary trees
sage: B = S.undefined()
sage: B.define(1+z*B^2)
sage: B
> 1 + z + 2*z^2 + 5*z^3 + 14*z^4 + 42*z^5 + 132*z^6 + O(z^7)

# Get the number of trees of size 100
sage: B[100]
> 896519947090131496687170070074100632420837521538745909320

Computing terms can be done in Sage using Lazy Power Series (Rubey, Scrimshaw, Roy, Chebrolu)

Constructions in Sage

# Define the class of binary trees
sage: B = S.undefined()
sage: B.define(1+z*B^2)
sage: B
> 1 + z + 2*z^2 + 5*z^3 + 14*z^4 + 42*z^5 + 132*z^6 + O(z^7)

# Get the number of trees of size 100
sage: B[100]
> 896519947090131496687170070074100632420837521538745909320

# Can search and pull info directly from OEIS
sage: oeis(B[:30])
> 0: 'A000108: Catalan numbers: C(n) = binomial(2n,n)/(n+1)
                                     = (2n)!/(n!(n+1)!).'

Computing terms can be done in Sage using Lazy Power Series (Rubey, Scrimshaw, Roy, Chebrolu)

Other Constructions

Pointing Operator

Mark one special atom (e.g. root trees) to get GF \(zA'(z)\).


Labelled Classes

Give each atom a unique number from 1 to \(|\sigma|\).
Use exponential generating function \(\displaystyle C(z) = \sum_{n \geq 0} \frac{c_n}{n!}z^n\).


Sum, product, and SEQ are the same (for EGFs) but

$$ \begin{aligned} \mathcal{C} &= \text{SET}(\mathcal{A}) \;\;\implies\;\; C(z) = e^{A(z)} \\ \mathcal{C} &= \text{CYC}(\mathcal{A}) \;\;\implies\;\; C(z) = \log \left(\frac{1}{1-A(z)}\right) \end{aligned} $$

References for Building GFs

References for Building GFs

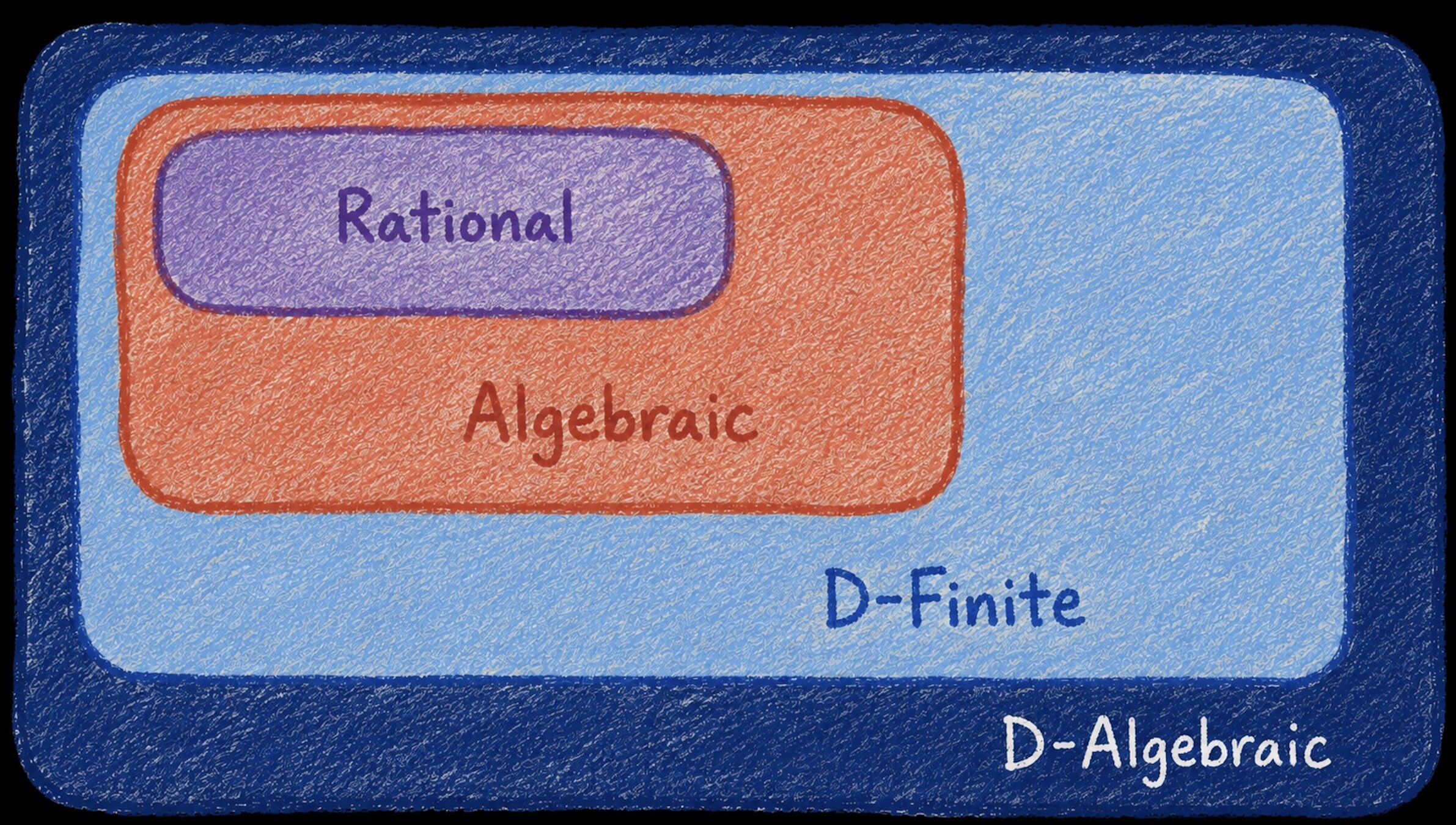

Hierarchy of Generating Functions

Part 3
Rational Generating Functions

A C-finite sequence \((f_n)\) satisfies a linear recurrence

$$ f_n + c_1f_{n-1} + \cdots + c_rf_{n-r}=0 \qquad (\star)$$
for all \(n \geq r\) where \(c_1,\dots,c_r\in\mathbb{Q}\).


Example
The Virahanka-Fibonacci numbers \((f_n)\) satisfy


$$ f_n - f_{n-1} - f_{n-2} = 0 \qquad (n \geq 2) $$
together with the initial conditions \(f_0=f_1=1\).

C-Finite Sequences

A C-finite sequence \((f_n)\) satisfies a linear recurrence

$$ f_n + c_1f_{n-1} + \cdots + c_rf_{n-r}=0 \qquad (\star)$$
for all \(n \geq r\) where \(c_1,\dots,c_r\in\mathbb{Q}\).

Theorem
\((f_n)\) is C-finite if and only if its GF \(F(z)\) is rational

C-Finite Sequences

A C-finite sequence \((f_n)\) satisfies a linear recurrence

$$ f_n + c_1f_{n-1} + \cdots + c_rf_{n-r}=0 \qquad (\star)$$
for all \(n \geq r\) where \(c_1,\dots,c_r\in\mathbb{Q}\).

Theorem
\((f_n)\) satisfies \((\star)\) if and only if


$$F(z) = \sum_{n \geq 0}f_nz^n = \frac{G(z)}{H(z)} = \frac{g_0 + g_1z + \cdots + g_{r-1}z^{r-1}}{1 + c_1z + \cdots + c_rz^r}$$
with \( g_k = f_k + c_1f_{k-1} + \cdots + c_rf_{k-r}\) (define \(f_k=0\) if \(k<0\)).

C-Finite Sequences

A C-finite sequence \((f_n)\) satisfies a linear recurrence

$$ f_n + {\color{red}c_1}f_{n-1} + \cdots + {\color{red}c_r}f_{n-r}=0 \qquad (\star)$$
for all \(n \geq r\) where \(c_1,\dots,c_r\in\mathbb{Q}\).

Theorem
\((f_n)\) satisfies \((\star)\) if and only if


$$F(z) = \sum_{n \geq 0}f_nz^n = \frac{G(z)}{{\color{red}H(z)}} = \frac{g_0 + g_1z + \cdots + g_{r-1}z^{r-1}}{{\color{red}1 + c_1z + \cdots + c_rz^r}}$$
\(H\) depends only on the coefficients \(c_1,\dots,c_r\) in \((\star)\)

C-Finite Sequences

A C-finite sequence \((f_n)\) satisfies a linear recurrence

$$ f_n + c_1f_{n-1} + \cdots + c_rf_{n-r}=0 \qquad (\star)$$
for all \(n \geq r\) where \(c_1,\dots,c_r\in\mathbb{Q}\).

Theorem
\((f_n)\) satisfies \((\star)\) if and only if


$$F(z) = \sum_{n \geq 0}f_nz^n = \frac{{\color{lightgreen}G(z)}}{H(z)} = \frac{{\color{lightgreen}g_0 + g_1z + \cdots + g_{r-1}z^{r-1}}}{1 + c_1z + \cdots + c_rz^r}$$


C-Finite Sequences

\(G\) depends on the \(c_i\) and \(f_0,\dots,f_{r-1}\)

C-Finite Sequences

A C-finite sequence \((f_n)\) satisfies a linear recurrence

$$ f_n + c_1f_{n-1} + \cdots + c_rf_{n-r}=0 \qquad (\star)$$
for all \(n \geq r\) where \(c_1,\dots,c_r\in\mathbb{Q}\).

Theorem
\((f_n)\) satisfies \((\star)\) if and only if


$$F(z) = \sum_{n \geq 0}f_nz^n = \frac{G(z)}{H(z)} = \frac{g_0 + g_1z + \cdots + g_{r-1}z^{r-1}}{1 + c_1z + \cdots + c_rz^r}$$
If \(G\) and \(H\) are coprime a root of \(H\) is a singularity of \(F\).

Write \(H(z) = C(z-\lambda_1)^{d_1}\cdots(z-\lambda_s)^{d_s}\) with the \(\lambda_k\) distinct and non-zero.


Partial Fraction Decomposition

There exist constants \(C_{i,j}\) such that

$$ F(z) = \sum_{i=1}^s \sum_{j=1}^{d_i} \frac{C_{i,j}}{(1-z/\lambda_i)^j} $$

C-Finite Coefficient Theorem

Write \(H(z) = C(z-\lambda_1)^{d_1}\cdots(z-\lambda_s)^{d_s}\) with the \(\lambda_k\) distinct and non-zero.


Partial Fraction Decomposition

There exist constants \(C_{i,j}\) such that

$$ F(z) = \sum_{i=1}^s \sum_{j=1}^{d_i} \frac{C_{i,j}}{(1-z/\lambda_i)^j} $$



Negative Binomial Theorem

For any \(n\in\mathbb{N}\),
$$[z^n](1-z/\lambda)^{-j} = \lambda^{-n} \binom{n+j-1}{j-1} = \lambda^{-n} \; \frac{(n+j-1)\cdots(n+1)}{(j-1)!}$$

C-Finite Coefficient Theorem

Corollary
If \((f_n)\) satisfies the C-finite recurrence \((\star)\) then

$$f_n = p_1(n)\lambda_1^{-n} + \cdots + p_s(n)\lambda_s^{-n}$$
for all \(n \geq 0\) where the \(\lambda_i\) are the distinct roots of the characteristic polynomial


$$ H(z) = 1 + c_1 + \cdots + c_rz^r$$
and \(p_i(n)\) is a polynomial in \(n\) of degree at most \(d_i-1\).

C-Finite Coefficient Theorem

C-Finite Sequences in Sage

# Introduce C-Finite Sequence
sage: C.<z> = CFiniteSequences(QQ)

C-Finite Sequences in Sage

# Introduce C-Finite Sequence
sage: C.<z> = CFiniteSequences(QQ)

# Define the sequence satisfying the recurrence
# a_n = a_{n-1} + a_{n-2} with a_0 = a_1 = 1
sage: fib = C.from_recurrence([1,1],[1,1])
sage: fib
> C-finite sequence, generated by -1/(z^2 + z - 1)

C-Finite Sequences in Sage

# Introduce C-Finite Sequence
sage: C.<z> = CFiniteSequences(QQ)

# Define the sequence satisfying the recurrence
# a_n = a_{n-1} + a_{n-2} with a_0 = a_1 = 1
sage: fib = C.from_recurrence([1,1],[1,1])
sage: fib
> C-finite sequence, generated by -1/(z^2 + z - 1)

# We can compute coefficients
sage: fib[100]
> 573147844013817084101

C-Finite Sequences in Sage

# Introduce C-Finite Sequence
sage: C.<z> = CFiniteSequences(QQ)

# Define the sequence satisfying the recurrence
# a_n = a_{n-1} + a_{n-2} with a_0 = a_1 = 1
sage: fib = C.from_recurrence([1,1],[1,1])
sage: fib
> C-finite sequence, generated by -1/(z^2 + z - 1)

# We can compute coefficients
sage: fib[100]
> 573147844013817084101

# Print closed form
sage: show(fib.closed_form())

$$\frac{1}{2}\left(1 + \frac{1}{\sqrt{5}}\right)\left(\frac{1+\sqrt{5}}{2}\right)^n + \frac{1}{2}\left(1 - \frac{1}{\sqrt{5}}\right)\left(\frac{1-\sqrt{5}}{2}\right)^n$$

C-Finite Sequences in Sage

# One can also define a sequence from its GF
sage: expr = C(1/(1-z-z^2-z^5)).closed_form()
sage: expr
> 0.6166275139556477?*1.704902776041646?^n + [...]

C-Finite Sequences in Sage

# One can also define a sequence from its GF
sage: expr = C(1/(1-z-z^2-z^5)).closed_form()
sage: expr
> 0.6166275139556477?*1.704902776041646?^n + [...]

# It is possible to extract each constant
sage: base = expr.operands()[0].operands()[0].operands()[0]
sage: base
> 1.704902776041646?

C-Finite Sequences in Sage

# One can also define a sequence from its GF
sage: expr = C(1/(1-z-z^2-z^5)).closed_form()
sage: expr
> 0.6166275139556477?*1.704902776041646?^n + [...]

# It is possible to extract each constant
sage: base = expr.operands()[0].operands()[0].operands()[0]
sage: base
> 1.704902776041646?

# Constants are stored exactly using Sage's AlgebraicField
# We can compute their annihilating polynomials
sage: base.minpoly()
> x^5 - x^4 - x^3 - 1

# And numerical approximations to any accuracy
sage: base.n(digits=50)
1.7049027760416460700699078453581855619122727078940

C-Finite Sequences in Sage

Conway's Look-and-Say Sequence

$$(\ell_n) = 1, 11, 21, 1211, \dots$$
If \(d_n\) denotes the number of (base 10) digits of \(\ell_n\) then Conway proved \(d_n\) has a rational GF.

C-Finite Sequences in Sage

sage: G = -12*z^78 + 18*z^77 - 18*z^76 + [...] + 1
sage: H =   6*z^72 -  9*z^71 +  9*z^70 + [...] + 1
sage: digitseq = C(G/H)
sage: digitseq[100]
> 666450031706

Conway's Look-and-Say Sequence

$$(\ell_n) = 1, 11, 21, 1211, \dots$$
If \(d_n\) denotes the number of (base 10) digits of \(\ell_n\) then Conway proved \(d_n\) has a rational GF.

C-Finite Sequences in Sage

sage: G = -12*z^78 + 18*z^77 - 18*z^76 + [...] + 1
sage: H =   6*z^72 -  9*z^71 +  9*z^70 + [...] + 1
sage: digitseq = C(G/H)
sage: digitseq[100]
> 666450031706

# Takes 10+ minutes
# Constants are degree 71 algebraic numbers!
sage: digitseq.closed_form()
> 2.042160076857881?*1.303577269034297?^n + [...]

Conway's Look-and-Say Sequence

$$(\ell_n) = 1, 11, 21, 1211, \dots$$
If \(d_n\) denotes the number of (base 10) digits of \(\ell_n\) then Conway proved \(d_n\) has a rational GF.

C-Finite Asymptotics

Recall that \(f_n = p_1(n)\lambda_1^{-n} + \cdots + p_s(n)\lambda_s^{-n}\).

Lemma
If \(\lambda_k\) is a root of \(H\) with multiplicity \(m\) then

$$ p_k(n) = \frac{m \; G(\lambda_k)}{(-\lambda_k)^{m} H^{(m)}(\lambda_k)} \, n^{m-1} + O\left(n^{m-2}\right).$$



C-Finite Asymptotics

Recall that \(f_n = p_1(n)\lambda_1^{-n} + \cdots + p_s(n)\lambda_s^{-n}\).

Lemma
If \(\lambda_k\) is a root of \(H\) with multiplicity \(m\) then

$$ p_k(n) = \frac{m \; G(\lambda_k)}{(-\lambda_k)^{m} H^{(m)}(\lambda_k)} \, n^{m-1} + O\left(n^{m-2}\right).$$

Proof Idea
$$\displaystyle \frac{G(z)}{H(z)} = \frac{C}{(z-\lambda_k)^m} + \frac{J(z)}{I(z)(z-\lambda_k)^{m-1}}$$
Multiply by \((z-\lambda_k)^m\) then set \(z=\lambda_k\).

C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| < |\lambda_k|\) for all \(k=2,\dots,s\) then



$$ f_n = p_1(n)\lambda_1^{-n} + O\left(w^{-n}n^{\alpha-1}\right)$$
where \(\displaystyle w = \min_{2 \leq k \leq s}|\lambda_k|\) and \(\alpha\) is the largest multiplicity of the roots of \(H\) with modulus \(w\).

C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| < |\lambda_k|\) for all \(k=2,\dots,s\) then



$$ f_n = p_1(n)\lambda_1^{-n} + O\left(w^{-n}n^{\alpha-1}\right)$$
where \(\displaystyle w = \min_{2 \leq k \leq s}|\lambda_k|\) and \(\alpha\) is the largest multiplicity of the roots of \(H\) with modulus \(w\).

# Find all minimal modulus roots for look-and-say digit GF
sage: G = -12*z^78 + 18*z^77 - 18*z^76 + [...] + 1
sage: H =   6*z^72 -  9*z^71 +  9*z^70 + [...] + 1
sage: rho = min([abs(r[0]) for r in H.roots(QQbar)])
sage: [r[0] for r in H.roots(QQbar) if abs(r[0]) == rho]
> [0.7671198507019154?]

C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| < |\lambda_k|\) for all \(k=2,\dots,s\) then



$$ f_n = p_1(n)\lambda_1^{-n} + O\left(w^{-n}n^{\alpha-1}\right)$$
where \(\displaystyle w = \min_{2 \leq k \leq s}|\lambda_k|\) and \(\alpha\) is the largest multiplicity of the roots of \(H\) with modulus \(w\).

# Dominant asymptotics for the look-and-say digit sequence
sage: var('n')
sage: (-G/z/H.derivative(z)).subs(z=rho) * (1/rho)^n
2.042160076857881?*1.303577269034297?^n

C-Finite Asymptotics

C-Finite Asymptotics

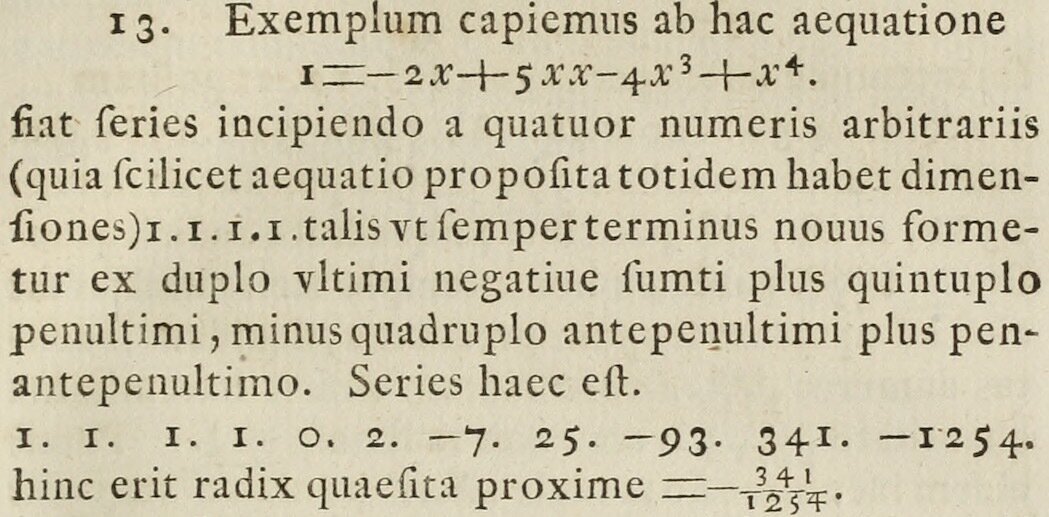

# Define the sequence satisfying
# a(n+4) = a(n) - 4*a(n+1) + 5*a(n+2) - 2*a(n+3)
# with a(0) = a(1) = a(2) = a(3) = 1
sage: a = C.from_recurrence([1,-4,5,-2],[1,1,1,1])
sage: a[:11]
> [1, 1, 1, 1, 0, 2, -7, 25, -93, 341, -1254]

C-Finite Asymptotics

# Bernoulli's polynomial has a unique root of minimal modulus
sage: A.<x> = QQ[x]
sage: H     = -1-2*x+5*x^2-4*x^3+x^4
sage: rts   = H.roots(QQbar,multiplicities=False)
sage: [abs(k) for k in rts]
> [0.27201?, 2.27201?, 1.27201?, 1.27201?]

C-Finite Asymptotics

# The ratio of terms approximates this root
sage: (341/(-1254)).n()
> -0.271929824561404
sage: rho = rts[0]
sage: rho
> -0.2720196495140690?

C-Finite Asymptotics

sage: for k in range(5,20):
sage:    print((a[k]/a[k+1]).n(digits=10))
sage: print(rho)

Because there is only one root of minimal modulus, we get exponential convergence.

$$\begin{aligned} & -0.{\color{red}2}857142857 \\ & -0.{\color{red}2}800000000 \\ & -0.{\color{red}2}688172043 \\ & -0.{\color{red}27}27272727 \\ & -0.{\color{red}27}19298246 \\ & -0.{\color{red}2720}173536 \\ & -0.{\color{red}2720}245471 \\ & -0.{\color{red}27201}81056 \\ & -0.{\color{red}272019}9449 \\ & -0.{\color{red}2720196}208 \\ & -0.{\color{red}2720196}457 \\ & -{0.\color{red}2720196}521 \\ & -0.{\color{red}27201964}88 \\ & -0.{\color{red}272019649}6 \\ & -0.{\color{red}2720196495} \\ & -0.{\color{red}2720196495140690?}\end{aligned}$$

C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| \leq |\lambda_k|\) for all \(k=2,\dots,s\) and \(\lambda_1\) has higher multiplicitly \(m\) than all other roots \(\lambda_k\) of \(H\) with \(|\lambda_1|=|\lambda_k|\) then

$$ f_n = \frac{m \; G(\lambda_1)}{(-\lambda_1)^{m} H^{(m)}(\lambda_1)} \, n^{m-1} \lambda_1^{-n} + O(n^{m-2}\lambda_1^{-n}).$$

C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| \leq |\lambda_k|\) for all \(k=2,\dots,s\) and \(\lambda_1\) has higher multiplicitly \(m\) than all other roots \(\lambda_k\) of \(H\) with \(|\lambda_1|=|\lambda_k|\) then

$$ f_n = \frac{m \; G(\lambda_1)}{(-\lambda_1)^{m} H^{(m)}(\lambda_1)} \, n^{m-1} \lambda_1^{-n} + O(n^{m-2}\lambda_1^{-n}).$$
Note
In this case we only get a polynomially smaller error.


C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| \leq |\lambda_k|\) for all \(k=2,\dots,s\) and \(\lambda_1\) has higher multiplicitly \(m\) than all other roots \(\lambda_k\) of \(H\) with \(|\lambda_1|=|\lambda_k|\) then

$$ f_n = \frac{m \; G(\lambda_1)}{(-\lambda_1)^{m} H^{(m)}(\lambda_1)} \, n^{m-1} \lambda_1^{-n} + O(n^{m-2}\lambda_1^{-n}).$$
Example
The GF for the number \(c_n\) of ways to make change for \(n\) cents in euro coins is

$$ \frac{1}{(1-z)(1-z^2)(1-z^5)(1-z^{10})(1-z^{20})(1-z^{50})(1-z^{100})(1-z^{200})}$$

C-Finite Asymptotics

Corollary
If \(G\) and \(H\) are coprime and \(|\lambda_1| \leq |\lambda_k|\) for all \(k=2,\dots,s\) and \(\lambda_1\) has higher multiplicitly \(m\) than all other roots \(\lambda_k\) of \(H\) with \(|\lambda_1|=|\lambda_k|\) then

$$ f_n = \frac{m \; G(\lambda_1)}{(-\lambda_1)^{m} H^{(m)}(\lambda_1)} \, n^{m-1} \lambda_1^{-n} + O(n^{m-2}\lambda_1^{-n}).$$
Example
The GF for the number \(c_n\) of ways to make change for \(n\) cents in euro coins is

$$ \frac{1}{(1-z)(1-z^2)(1-z^5)(1-z^{10})(1-z^{20})(1-z^{50})(1-z^{100})(1-z^{200})}$$
Thus \(c_n=\frac{8}{H^{(8)}(1)} \cdot n^7 + O(n^6) \sim \frac{n^7}{2(5)(10)(20)(50)(100)(200)7!}.\)

Practicalities of Asymptotics

How do we find dominant singularities (of minimal modulus)?







Practicalities of Asymptotics

How do we find dominant singularities (of minimal modulus)?

Vivanti-Pringsheim Theorem
If \(f_n \geq 0\) for all \(n \geq 0\) and \(G\) and \(H\) are coprime then one root of \(H\) with minimal modulus is positive and real.





Practicalities of Asymptotics

How do we find dominant singularities (of minimal modulus)?

Vivanti-Pringsheim Theorem
If \(f_n \geq 0\) for all \(n \geq 0\) and \(G\) and \(H\) are coprime then one root of \(H\) with minimal modulus is positive and real.



To find rational GF asymptotics:

1. Find the smallest \(\lambda>0\) with \(H(\lambda)=0\).



Practicalities of Asymptotics

How do we find dominant singularities (of minimal modulus)?

Vivanti-Pringsheim Theorem
If \(f_n \geq 0\) for all \(n \geq 0\) and \(G\) and \(H\) are coprime then one root of \(H\) with minimal modulus is positive and real.



To find rational GF asymptotics:

1. Find the smallest \(\lambda>0\) with \(H(\lambda)=0\).

2. Find all (other) roots of \(H\) with modulus \(\lambda\).



Practicalities of Asymptotics

How do we find dominant singularities (of minimal modulus)?

Vivanti-Pringsheim Theorem
If \(f_n \geq 0\) for all \(n \geq 0\) and \(G\) and \(H\) are coprime then one root of \(H\) with minimal modulus is positive and real.



To find rational GF asymptotics:

1. Find the smallest \(\lambda>0\) with \(H(\lambda)=0\).

2. Find all (other) roots of \(H\) with modulus \(\lambda\).

3. Compute the asymptotic contributions of each.





Practicalities of Asymptotics

How do we find dominant singularities (of minimal modulus)?

Vivanti-Pringsheim Theorem
If \(f_n \geq 0\) for all \(n \geq 0\) and \(G\) and \(H\) are coprime then one root of \(H\) with minimal modulus is positive and real.



To find rational GF asymptotics:

1. Find the smallest \(\lambda>0\) with \(H(\lambda)=0\).

2. Find all (other) roots of \(H\) with modulus \(\lambda\).

3. Compute the asymptotic contributions of each.



What could go wrong?

Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n=0\) for any \(n\in\mathbb{N}\).













Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n=0\) for any \(n\in\mathbb{N}\).



Theorem (Skolem, 1933)

The indices of zeroes of a C-finite sequence over \(\mathbb{Q}\) form a finite set together with a finite set of arithmetic progressions.







Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n=0\) for any \(n\in\mathbb{N}\).



Theorem (Skolem, 1933)

The indices of zeroes of a C-finite sequence over \(\mathbb{Q}\) form a finite set together with a finite set of arithmetic progressions.


Orders 1 and 2: Easy


Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n=0\) for any \(n\in\mathbb{N}\).



Theorem (Skolem, 1933)

The indices of zeroes of a C-finite sequence over \(\mathbb{Q}\) form a finite set together with a finite set of arithmetic progressions.


Orders 1 and 2: Easy
Orders 3 and 4: Mignotte, Shorey, and Tijdeman (1984)
                              Vereshchagin (1985)


Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n=0\) for any \(n\in\mathbb{N}\).



Theorem (Skolem, 1933)

The indices of zeroes of a C-finite sequence over \(\mathbb{Q}\) form a finite set together with a finite set of arithmetic progressions.


Orders 1 and 2: Easy
Orders 3 and 4: Mignotte, Shorey, and Tijdeman (1984)
                              Vereshchagin (1985)
Simple recurrences: Bilu, Luca, Nieuwveld, Ouaknine, Purser,
                                       Worrell (2022) + NT conjectures

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}=}\;0\) for any \(n\in\mathbb{N}\).





Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}=}\;0\) for any \(n\in\mathbb{N}\).



Open Problem 2 (Strict Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n \;{\color{red}>}\; 0\) for all \(n\in\mathbb{N}\).




Skolem's Problem

Open Problem 1 (Skolem's Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}=}\;0\) for any \(n\in\mathbb{N}\).



Open Problem 2 (Strict Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n \;{\color{red}>}\; 0\) for all \(n\in\mathbb{N}\).


Open Problem 3 (Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n \;{\color{red}\geq}\; 0\) for all \(n\in\mathbb{N}\).

Skolem's Problem

Open Problem 4 (Ultimate Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}\geq}\;0\) for all but finitely many \(n\).



Ultimate Positivity

Open Problem 4 (Ultimate Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}\geq}\;0\) for all but finitely many \(n\).


Order at most 5: Ouaknine and Worrell (2014)


Ultimate Positivity

Open Problem 4 (Ultimate Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}\geq}\;0\) for all but finitely many \(n\).


Order at most 5: Ouaknine and Worrell (2014)

Simple recurrences: Ouaknine and Worrell (2014)





Ultimate Positivity

Open Problem 4 (Ultimate Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}\geq}\;0\) for all but finitely many \(n\).


Order at most 5: Ouaknine and Worrell (2014)

Simple recurrences: Ouaknine and Worrell (2014)



An algorithm for order 6 would be significant breakthrough in analytic number theory (computability of Lagrange constant)

Ultimate Positivity

Open Problem 4 (Ultimate Positivity Problem)

Is there an algorithm that takes a C-finite sequence \((f_n)\) and determines whether \(f_n\;{\color{red}\geq}\;0\) for all but finitely many \(n\).


Order at most 5: Ouaknine and Worrell (2014)

Simple recurrences: Ouaknine and Worrell (2014)



An algorithm for order 6 would be significant breakthrough in analytic number theory (computability of Lagrange constant)



What happens in practice?

Ultimate Positivity

\(\mathbb{N}\)-Rationality

The set of \(\mathbb{N}\)-rational functions:

  • contains 1 and the variable \(z\)
  • is closed under addition and multiplication
  • is closed under pseudoinverse \(f \mapsto 1/(1-zf)\)



The set of \(\mathbb{N}\)-rational functions:

  • contains 1 and the variable \(z\)
  • is closed under addition and multiplication
  • is closed under pseudoinverse \(f \mapsto 1/(1-zf)\)


These are the generating functions of regular languages
(classes using only \(+, \times, \text{SEQ}\) with no recursion).






\(\mathbb{N}\)-Rationality

The set of \(\mathbb{N}\)-rational functions:

  • contains 1 and the variable \(z\)
  • is closed under addition and multiplication
  • is closed under pseudoinverse \(f \mapsto 1/(1-zf)\)


These are the generating functions of regular languages
(classes using only \(+, \times, \text{SEQ}\) with no recursion).




Theorem (Berstel 1971)
If \(F(z)\) is \(\mathbb{N}\)-rational then its dominant singularities consist of some \(\rho>0\) and (potentially) some \(\rho \, \zeta_k\) for roots of unity \(\zeta_k\).

\(\mathbb{N}\)-Rationality

Example (Of a Horrible Name)
Let \(\theta = \arccos(1/3)\). The function

$$ F(z) = \frac{2(1+3z)^2}{(1-9z)(1+14z+81z^2)} = \frac{1/2}{1-9ze^{2i\theta}} + \frac{1/2}{1-9ze^{-2i\theta}} + \frac{1}{1-9z}$$
is not \(\mathbb{N}\)-rational as \(e^{2i\theta}\) not a root of unity, but

$$ [z^n]F(z) = 9^n(1+\cos(2n\theta)) \geq 0 $$
implies \(F\) has series coefficients in \(\mathbb{N}\).

\(\mathbb{N}\)-Rationality

Theorem (Berstel and Reutenauer, 1988)

If \(F\) is \(\mathbb{N}\)-rational then there exists some \(p>0\) with


$$ F(z) = S_0(z^p) + zS_1(z^p) + \cdots + z^{p-1}S_{p-1}(z^p) $$
where each \(S_k\) is an \(\mathbb{N}\)-rational series with a unique singularity of minimal modulus.





\(\mathbb{N}\)-Rationality

Theorem (Berstel and Reutenauer, 1988)

If \(F\) is \(\mathbb{N}\)-rational then there exists some \(p>0\) with


$$ F(z) = S_0(z^p) + zS_1(z^p) + \cdots + z^{p-1}S_{p-1}(z^p) $$
where each \(S_k\) is an \(\mathbb{N}\)-rational series with a unique singularity of minimal modulus.




Barcucci et al. (2001)

Algorithm to test for \(\mathbb{N}\)-rationality and (if positive) construct corresponding regular language.

\(\mathbb{N}\)-Rationality

Meta Theorem

Any "naturally occurring" combinatorial generating function that is rational is actually \(\mathbb{N}\)-rational.





Why I Don't Lose Sleep

Meta Theorem

Any "naturally occurring" combinatorial generating function that is rational is actually \(\mathbb{N}\)-rational.



Bousquet-Mélou (2006 ICM): "I have never met a counting problem that would yield a rational, but not \(\mathbb{N}\)-rational, GF".


Koutschan (2005 Diplomarbeit): "From about 60 rational series with nonnegative coefficients taken from [the OEIS], not one single [one] turned out to be not \(\mathbb{N}\)-rational."





Why I Don't Lose Sleep

Meta Theorem

Any "naturally occurring" combinatorial generating function that is rational is actually \(\mathbb{N}\)-rational.



Bousquet-Mélou (2006 ICM): "I have never met a counting problem that would yield a rational, but not \(\mathbb{N}\)-rational, GF".


Koutschan (2005 Diplomarbeit): "From about 60 rational series with nonnegative coefficients taken from [the OEIS], not one single [one] turned out to be not \(\mathbb{N}\)-rational."



We don't need to worry about computability of asymptotics.
It is still interesting to ask about complexity of asymptotics.

Why I Don't Lose Sleep

The most expensive step in finding asymptotics is finding the roots of minimal modulus.



Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).



Complexity of Asymptotics

The most expensive step in finding asymptotics is finding the roots of minimal modulus.



Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).



Lemma (Mahler, Mignotte, ...)

If \(P(\alpha)=P(\beta)=0\) and \(\alpha \neq \beta\) then

$$|\alpha-\beta| \geq D_d \cdot 2^{-h(d-1)} $$

where \(D_d\) is an explicit constant depending only on \(d\).



Complexity of Asymptotics

The most expensive step in finding asymptotics is finding the roots of minimal modulus.



Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).



Lemma (Mahler, Mignotte, ...)

If \(P(\alpha)=P(\beta)=0\) and \(\alpha \neq \beta\) then

$$|\alpha-\beta| \geq D_d \cdot 2^{-h(d-1)} $$

where \(D_d\) is an explicit constant depending only on \(d\).



What about \(||\alpha|-|\beta||\)?

Complexity of Asymptotics

Absolute Root Separation

Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).

Theorem (Bugeaud et al., 2022)

Suppose \(P(\alpha)=P(\beta)=0\) and \(|\alpha| \neq |\beta|\).


$$\begin{aligned} &\text{If \(\alpha,\beta\in\mathbb{R}\) then \qquad\quad\;\,\;\, \(||\alpha|-|\beta|| \geq A_d \cdot 2^{-h(d-1)}\)} \\[+2mm] &\text{If \(\alpha\in\mathbb{R}\) and \(\beta\notin\mathbb{R}\) then \; \(||\alpha|-|\beta|| \geq B_d \cdot 2^{-2h(d-1)(d-2)}\)} \\[+2mm] &\text{In general \qquad\qquad\qquad\,\; \(||\alpha|-|\beta|| \geq C_d \cdot 2^{-h(d-1)(d-2)(d-3)/2}\)}\end{aligned}$$
for explicit constants \(A_d,B_d,C_d\) depending only on \(d\).



Absolute Root Separation

Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).

Theorem (Bugeaud et al., 2022)

Suppose \(P(\alpha)=P(\beta)=0\) and \(|\alpha| \neq |\beta|\).


$$\begin{aligned} &\text{If \(\alpha,\beta\in\mathbb{R}\) then \qquad\quad\;\,\;\, \(||\alpha|-|\beta|| \geq A_d \cdot 2^{-h(d-1)}\)} \\[+2mm] &\text{If \(\alpha\in\mathbb{R}\) and \(\beta\notin\mathbb{R}\) then \; \(||\alpha|-|\beta|| \geq B_d \cdot 2^{-2h(d-1)(d-2)}\)} \\[+2mm] &\text{In general \qquad\qquad\qquad\,\; \(||\alpha|-|\beta|| \geq C_d \cdot 2^{-h(d-1)(d-2)(d-3)/2}\)}\end{aligned}$$
Corollary: Find all dominant singularities in \(\tilde{O}(hd^3)\) bit operations when \(f_n \geq 0\) for all \(n\).

Absolute Root Separation

Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).

Theorem (Bugeaud et al., 2022)

Suppose \(P(\alpha)=P(\beta)=0\) and \(|\alpha| \neq |\beta|\).


$$\begin{aligned} &\text{If \(\alpha,\beta\in\mathbb{R}\) then \qquad\quad\;\,\;\, \(||\alpha|-|\beta|| \geq A_d \cdot 2^{-h(d-1)}\)} \\[+2mm] &\text{If \(\alpha\in\mathbb{R}\) and \(\beta\notin\mathbb{R}\) then \; \(||\alpha|-|\beta|| \geq B_d \cdot 2^{-2h(d-1)(d-2)}\)} \\[+2mm] &\text{In general \qquad\qquad\qquad\,\; \(||\alpha|-|\beta|| \geq C_d \cdot 2^{-h(d-1)(d-2)(d-3)/2}\)}\end{aligned}$$
Corollary: Find all dominant singularities in \(\tilde{O}(hd^{\color{red}3})\) bit operations when \(f_n \geq 0\) for all \(n\).

Absolute Root Separation

Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).

Theorem (Bugeaud et al., 2022)

Suppose \(P(\alpha)=P(\beta)=0\) and \(|\alpha| \neq |\beta|\).


$$\begin{aligned} &\text{If \(\alpha,\beta\in\mathbb{R}\) then \qquad\quad\;\,\;\, \(||\alpha|-|\beta|| \geq A_d \cdot 2^{-h(d-1)}\)} \\[+2mm] &\text{If \(\alpha\in\mathbb{R}\) and \(\beta\notin\mathbb{R}\) then \; \(||\alpha|-|\beta|| \geq B_d \cdot 2^{-2h(d-1)(d-2)}\)} \\[+2mm] &\text{In general \qquad\qquad\qquad\,\; \(||\alpha|-|\beta|| \geq C_d \cdot 2^{-h(d-1)(d-2)(d-3)/2}\)}\end{aligned}$$
Corollary: Find all dominant singularities in \(\tilde{O}(hd^{\color{red}4})\) bit operations in general.

Absolute Root Separation

Let \(P\in\mathbb{Z}[z]\) have degree \(d\) and coefficient size at most \(2^h\).

Theorem (Bugeaud et al., 2022)

Suppose \(P(\alpha)=P(\beta)=0\) and \(|\alpha| \neq |\beta|\).


$$\begin{aligned} &\text{If \(\alpha,\beta\in\mathbb{R}\) then \qquad\quad\;\,\;\, \(||\alpha|-|\beta|| \geq A_d \cdot 2^{-h(d-1)}\)} \\[+2mm] &\text{If \(\alpha\in\mathbb{R}\) and \(\beta\notin\mathbb{R}\) then \; \(||\alpha|-|\beta|| \geq B_d \cdot 2^{-2h(d-1)(d-2)}\)} \\[+2mm] &\text{In general \qquad\qquad\qquad\,\; \(||\alpha|-|\beta|| \geq C_d \cdot 2^{-h(d-1)(d-2)(d-3)/2}\)}\end{aligned}$$
Open Problem: Find the optimal complexity for asymptotics of C-finite sequences.

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

# Plot signs of terms
A.<z> = QQ[[z]]
ser = 1/(8+7*z-9*z^2-17*z^3)
u = ser.coefficients()

N = 100
pts = [[k,sgn(u[k])]
       for k in range(N)]
show(point(pts))

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

# Plot signs of terms
A.<z> = QQ[[z]]
ser = 1/(8+7*z-9*z^2-17*z^3)
u = ser.coefficients()

N = 10000
pts = [[k,sgn(u[k])]
       for k in range(N)]
show(point(pts))

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

A.<z> = QQ[z]
H = 8 + 7*z - 9*z^2 - 17*z^3
rts = H.roots(QQbar,
        multiplicities=False)

from sage.plot.circle import circle
c_plot = circle((0, 0), abs(rho))
p_plot = list_plot(rts)
show(c_plot + p_plot)

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

A.<z> = QQ[z]
H = 8 + 7*z - 9*z^2 - 17*z^3
rts = H.roots(QQbar,
        multiplicities=False)

from sage.plot.circle import circle
c_plot = circle((0, 0), abs(rho))
p_plot = list_plot(rts)
show(c_plot + p_plot)

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).



Positive root is                           0.77781401...
Complex pair has modulus     0.77782634...

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).



Positive root is                           0.77781401...
Complex pair has modulus     0.77782634...

Give asymptotic terms


$$ (0.03962...)\cdot({\color{red}1.2856}5...)^n \qquad (0.60093...)\cdot({\color{red}1.2856}3...)^n$$

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).



Positive root is                           0.77781401...
Complex pair has modulus     0.77782634...

Real positive root doesn't dominate until index 223,200

How Bad Can it Get?

Consider the sequence defined by \(\displaystyle (u_0,u_1,u_2) = \left(\frac{1}{8}, -\frac{7}{64}, \frac{121}{512}\right)\)

$$ 8u_{n+3} + 7u_{n+2} - 9u_{n+1} - 17u_n = 0,$$
with generating function \(1/(8 + 7z - 9z^2 -17z^3)\).



Positive root is                           0.77781401...
Complex pair has modulus     0.77782634...

Real positive root doesn't dominate until index 223,200


Such pathological issues are rare in practice. Thus, we start at reasonable precision and refine further only if necessary.

Theorem

The class of binary trees cannot be recognized by a finite automaton.



Applications of C-Finiteness

Theorem

The class of binary trees cannot be recognized by a finite automaton.



Proof

Any language recognized by a finite automaton is regular and thus has a rational generating function.

Binary trees have the irrational generating function


$$ C(z) = \frac{1- \sqrt{1-4z}}{2z}.$$

Applications of C-Finiteness

Theorem

The series \(\displaystyle F(z) = \sum_{n\geq1}\frac{z^n}{n^5}\) is irrational.





Applications of C-Finiteness

Theorem

The series \(\displaystyle F(z) = \sum_{n\geq1}\frac{z^n}{n^5}\) is irrational.



Proof

The coefficient sequence \(f_n=n^{-5}\) is not C-finite by the C-finite Coefficient Theorem.



Note: Irrationality of \(F(1) = \zeta(5)\) is still open.

Applications of C-Finiteness

Theorem

The sequence of prime numbers \(p_n\) satisfies no linear recurrence with constant coefficients.





Applications of C-Finiteness

Applications of C-Finiteness

Theorem

The sequence of prime numbers \(p_n\) satisfies no linear recurrence with constant coefficients.



Proof

The prime number theorem implies


$$p_n = n\log n + n\log n \log \log n + O(n).$$





Applications of C-Finiteness

Theorem

The sequence of prime numbers \(p_n\) satisfies no linear recurrence with constant coefficients.



Proof

The prime number theorem implies


$$p_n = n\log n + n\log n \log \log n + O(n).$$



Note: The \(\log \log n\) term will imply that \(p_n\) satisfies no linear recurrence with polynomial coefficients.

Summary of Lecture 1

Many combinatorial methods to encode generating functions with algebraic/differential/functional equations.



We get a hierarchy of generating functions


$$ \text{rational} \;\subset\; \text{algebraic} \;\subset\; \text{D-finite} \;\subset\; \text{D-algebraic}$$




Univariate rational generating functions:


  • simplest (non-trivial) family to study for asymptotics
  • already have interesting computability and complexity questions

Thank You!

https://melczer.ca/MPI26



Lecture 2 (later today)
Meromorphic, Algebraic, and D-finite Asymptotics
